Mornsun's expanded range of Rail compatible R3 DC/DC converters up to 40W

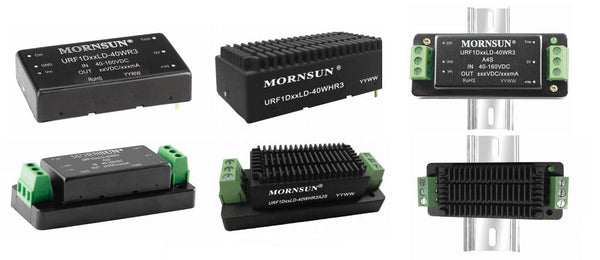

Mornsun’s new URF1D_LD-40WR3 series of 40W Rail R3 converters have been recently released, to extend their 6W-20W range of RAIL R3 DC converters. The new URF1D_LD-40WR3 series offer, a wide input voltage range of 40-160VDC need to suit 72V, 96V, 110V voltages used in the railway industry with 3KVDC/1.5KVAC isolation ensures they comply with Rail/Locomotive EN50155 standard requirements and EN62368 standards. The devices have -40c ~ +85c wide operating temperature with UVP, OSC, OCP, OVP and OTP protection in an industry standard 50.8x25.4x11.8mm DIP housing & pin connection. The URF1D_LD-40WR3 series has an optional heat sink in PCB mount, along with chassis mount and DIN rail mount packages for designer flexibility in end product applications. The URF1D_LD-40WR3 is ideal for applications in railway monitoring, lighting equipment, information display and other railway vehicle-related equipment or any application requiring a wide 40-160VDC input range and an enhanced isolation voltage, available in output voltages of 3.3, 5, 12, 15, 24 and 48 volts.
Mornsun distributed in ANZ by DLPC Pty Ltd
Features:
- Ultra-wide input voltage range: 40-160VDC
- Enhanced isolation, isolation voltage: 3000VDC/1500VAC
- Operating temp. range: -40℃ to +85℃
- Input Under-voltage protection, output short circuit, over-current, over–voltage protection, over-temperature protection
- International standard pin-out
- Reverse voltage protection available with A2S(Chassis mounting) or A4S(35mm DIN-Rail mounting)
- Meets requirements of railway standard EN50155
Part Number |
Power(W) |
Input Voltage Range(VDC) |
Output Voltage(VDC) |
No. of outputs |
Isolation(VDC) |
Package |
Dimension (mm) |
URF1D03LD-40WR3 |
40 |
40~160 |
3.3 |
1 |
3000 |
DIP |
50.80*25.40*11.80 |
URF1D05LD-40WR3 |
40 |
40~160 |
5 |
1 |
3000 |
DIP |
50.80*25.40*11.80 |
URF1D12LD-40WR3 |
40 |
40~160 |
12 |
1 |
3000 |
DIP |
50.80*25.40*11.80 |
URF1D15LD-40WR3 |
40 |
40~160 |
15 |
1 |
3000 |
DIP |
50.80*25.40*11.80 |
URF1D24LD-40WR3 |
40 |
40~160 |
24 |
1 |
3000 |
DIP |
50.80*25.40*11.80 |
URF1D48LD-40WR3 |
40 |
40~160 |
48 |
1 |
3000 |
DIP |
50.80*25.40*11.80 |
