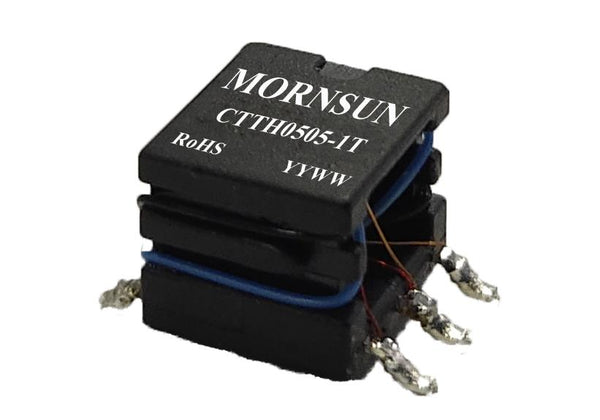

Distributed in Australia & New Zealand by DLPC Pty Ltd , MORNSUN released an automotive high isolation voltage transformer, the new CTTH0505-1T is a compact size transformer has isolation up to 6KVDC & all assembly components meet the AEC-Q200 standard, from conception to design to verification to the production processes it is assembled completely in accordance with IATF16949 system requirements.

The new CTTH0505-1T transformer can also be used with MORNSUNs SCM1201 IC fixed input push-pull controller to supply power in the secondary side of isolated data interfaces such as RS232, RS485 or CAN bus applications in pure digital, analog acquisition & data exchange circuits.

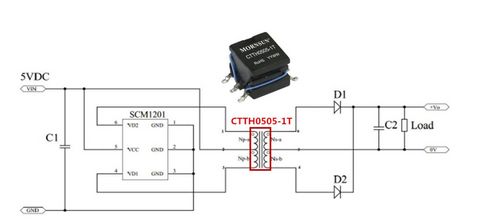

Typical circuit diagram as below,

CTTH0505-1T transformer Features are Meets AEC-Q200 standard that is required by passive components automotive quality certification, Meets the IATF 16949 standard, Compact SMD package, Isolation voltage: 5000VAC/6000VDC, Operating temperature range: -40℃ to +125℃, Meets the design requirements for reinforced insulation.

Please refer to the technical manual for specific product parameters:

CTTH0505-1T Product Page

Reference: 3000VDC Automotive Compact Size High Isolation Transformer-TSHT5.8-01
