1455F flanged extruded aluminium enclosure for surface mounting

1455F flanged extruded aluminium enclosure for surface mounting

Distributed in Australia by DLPC Pty Ltd announces Hammond Electronics has released a  new model of a flanged extruded aluminium enclosure 1455F flanged adding a further variant to the popular 1455 family.

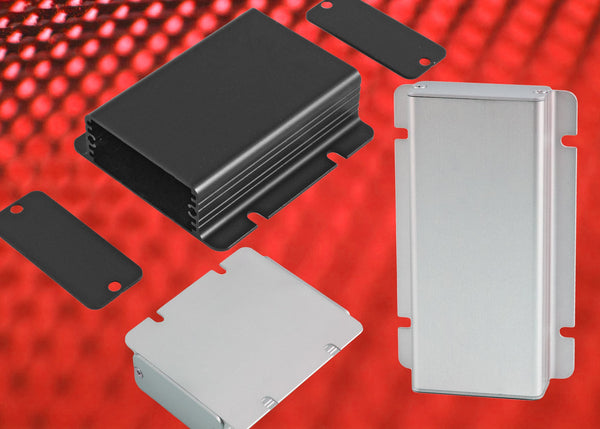

The 1455F series features a completely new extrusion profile which has a flat mounting base with integral mounting flanges. The flanges, that extend beyond the body of the unit, have four notches for securing screws to mounting the units to flat surfaces such as a wall, bulkhead or machine or external case.

Currently, there are two sizes available, 80 x 54 x 23mm & 120 x 54 x 23mm with an overall width of 77mm which includes the two mounting flanges, available in clear or a black anodized finish & additional sizes being released over the next few months, with both sizes designed to accept 50mm wide 1.6mm thick PCBs in lengths of either 80mm or 120mm.

The boxes have two removable flat aluminium end panels, that are easy for machining of I/O components and the boxes have PCB mounts into horizontal slots in the body of the enclosure with four alternative vertical positions provided.
The 1455F is added to the 29 strong 1455 family which ranges in size from 60 x 45 x 25mm to 220 x 165 x 52mm.

Other standard variants include the IP65 sealed 1457, the screened 1457-EMI version and the 1455HD thermally efficient units.
