Product Code -

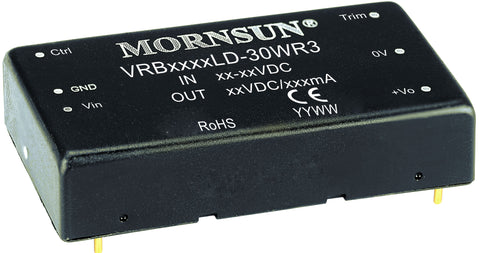

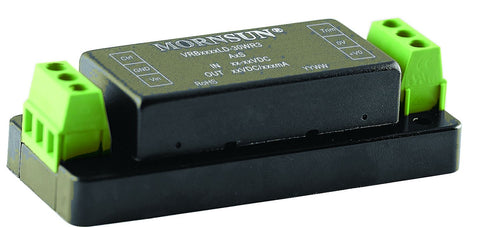

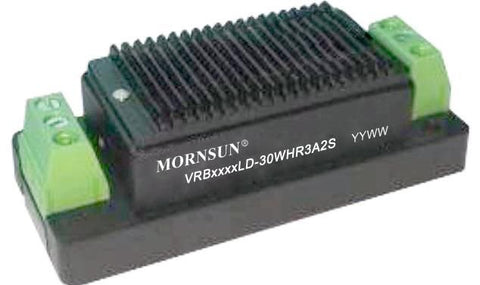

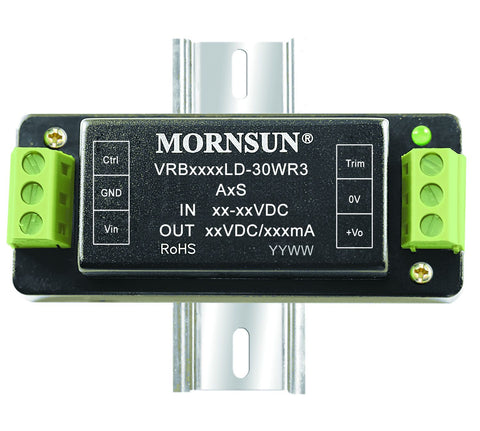

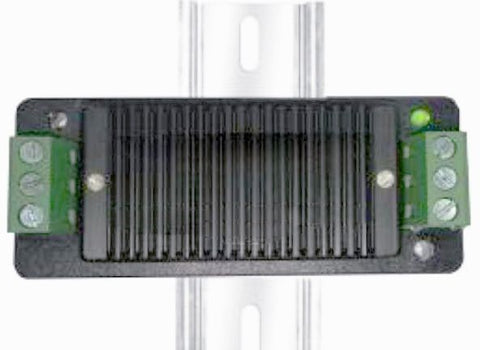

VRB_LD-30WR3 series are isolated 30W DC-DC products with 2:1 input voltage. They feature efficiency up to 90%, 1500VDC isolation, operating temperature of -40¼ to +80¼, output short circuit protection, over-voltage protection, over-current protection and EMI meets CISPR22/EN55022 CLASS A, which make them widely applied in data transmission device, battery power supply device, tele-comunication device, distributed power supply system, remote control system, industrial robot fields. And extension package A2S and A4S also enable them with reverse voltage protection.

  • Power (W) - 30
  • No. of Outputs - 1
  • Isolation (VDC) - 1500
  • Package - DIP
  • Dimension (mm) - 50.8 x 25.4 x 11.8

Datasheet Link
