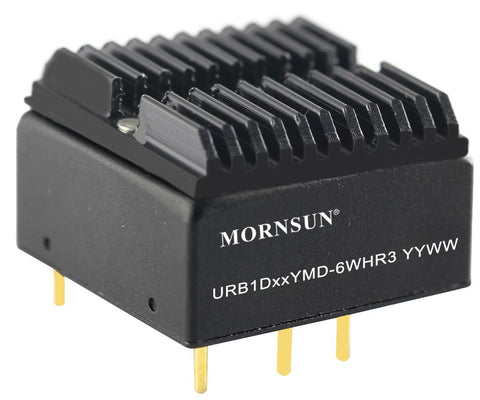

URB1D_YMD-6WR3

Product Code -



URB1D_YMD-6WR3 series are isolated 6W DC-DC products with 40-160VDC input voltage. They feature efficiency up to 86%, 2250VDC isolation, operating temperature of -40 ¼ to +85¼, Input Under-voltage Protection, Output short circuit, over-current, over–voltage protection. Railway vehicle electronic equipment widely used in 72V, 96V and 110V.

  • Power (W) - 6
  • Vin (VDC) - 40~160 (4:1)
  • No. of Outputs - 1
  • Isolation (VDC) - 2250
  • Package - Horizontal Package
  • Dimension (mm) - 25.4 x 25.4 x 11.7
