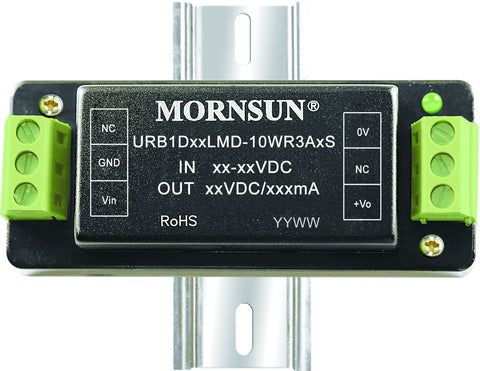

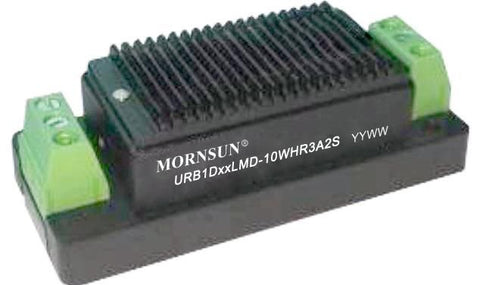

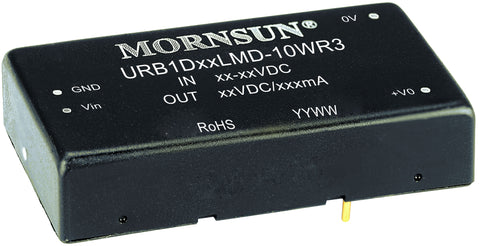

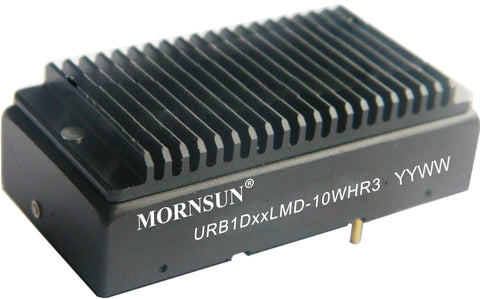

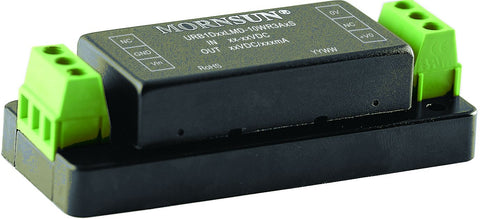

URB1D_LMD-10WR3

Product Code -



URB1D_LMD-10WR3 series are isolated 10W DC-DC products with 4:1 input voltage .Their feature efficiency up to 85%, 2250VDC isolation with enhanced isolation, operating temperature of -40 ¼to +85¼, Input Under-voltage Protection, Output short circuit, over-current, over–voltage protection. Railway vehicle electronic equipment widely used in 72V, 96V and 110V.

  • Power (W) - 10
  • Vin (VDC) - 110 (40~160)
  • No. of Outputs - 1
  • Isolation (VDC) - 2250
  • Package - DIP
  • Dimension (mm) - 50.8 x 25.4 x 11.8

Datasheet Link
