Product Code -

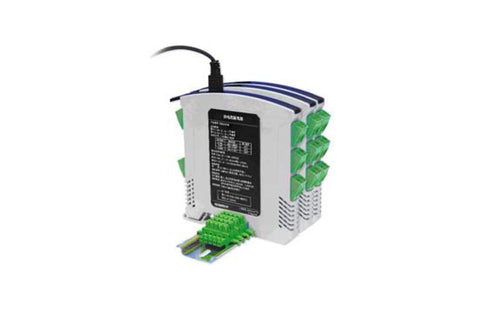

TRxxxPW series thermal resistance isolator which are mainly applied in industrial automation systems can isolated convert thermal resistance input signal of the industrial field instruments to the matched analog output signal for the DCS/PLC, realizing the acquisition and transmission of field signal. An independent power supply is needed for the product and the port of power supply, input and output are isolated from each other. This series of products contain combinations of 1 input 1 output , 1 input 2 output, 2 input 2 output and so on. The thickness of 12.5mm meet the need for high density field installation. Connection of field devices and the regions: 2-wire, 3-wire thermal resistance.

  • Vin (VDC) - 18~30V
  • Current Output - 4~20mA / 0~20mA (Programmable)
  • Voltage Outpit - 0~5V / 0~10V / 1~5V / 2~10V (Programmable)
Datasheet Link
