Product Code -

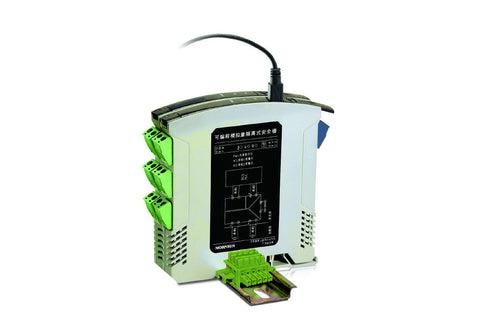

TCxxxPW-EX thermocouples Isolation Safety Barrier series received from the hazardous area of thermocouple signals or mV level, and converted to the standard analog current or voltage signal which is isolated with application field, and transmitted to the control cabinet. While limiting the energy of intrinsically safe end string into hazardous area, to ensure that the system is intrinsically safe explosion-proof performance. The product has a Mini USB interface, It can be used for programming to configure the type and range of input and output signals. The product has the internal cold junction compensation function. An independent power supply is needed for the product later with isolation power output you need.and the port of power supply, input and output are isolated from each other. The thickness is12.5mm. Connection of field devices and the regions: thermocouples; zone 0,zone 1,zone 2; IIA,IIB,IIC,T4~T6 hazardous area.Product application: widely used in chemical, petroleum, pharmaceutical, metallurgy, coal mine,natural gas, electricity, etc Safety explosion protection system.

  • Vin (VDC) - 24 (18~36)
  • Package - DIN-Rail
  • Current Output - 4~20mA / 0~20mA (Programmable)
  • Voltage Output - 0~5V / 0~10V / 1~5V / 2~10V (Programmable)

Datasheet Link
