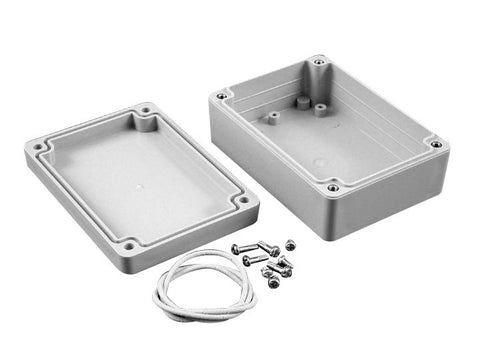

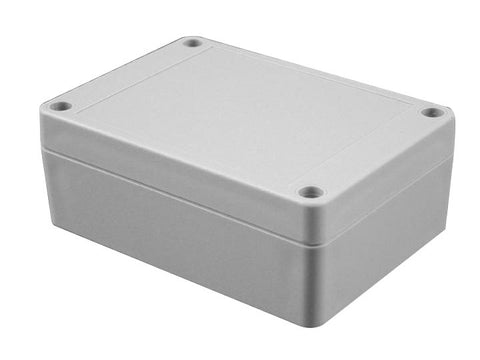

RP Series - RITEC Watertight Shallow Lid - ABS Plastic / Polycarbonate
Product Code -
- Ideally suited for mounting printed circuit boards or components.
- Material - General purpose ABS plastic (material carries a UL flammability rating of UL94 HB).

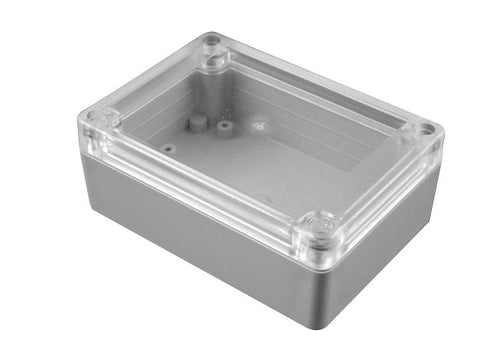

- Color is a light gray with a light texture. Also available with a clear polycarbonate lid
- Gasketed lid with two piece "tongue & groove" construction provides protection against access of oil, dust and water.
- Rubber gasket is included and must be field installed.
- Lid includes smooth recessed area for membrane, label or silkscreen
- Designed to meet IP 65.
- Lid is secured with self captivating - M3.5 stainless steel machine screws (included), threaded into integral stainless steel bushings (for repetitive assembly & disassembly). All stainless steel hardware to avoid corrosion caused by dissimilar metals.
- Lid screws are self captivating (lid holes are threaded with the first installation of lid screws).
Internal features are maximized for mounting options:
- Internal DIN rail mounting tabs - molded in.
- Options vary with size
