R240 Series - ROLEC AluCLIC Watertight - Diecast Aluminium

Product Code -

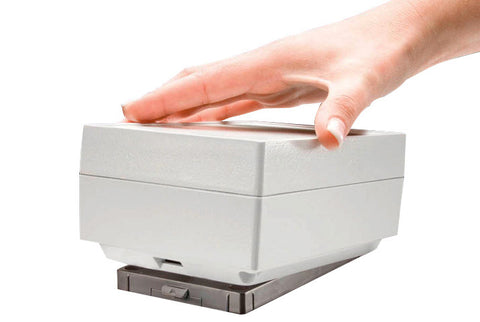

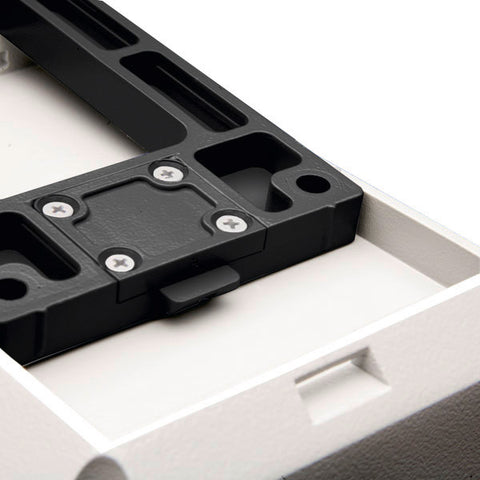

  • Instant installation & replacement with a snap-on device (clicks into place)
  • Lid screws are hidden on the underneath of the base - allowing use of the entire front for keypads, displays etc.
  • Integrated 1.7 mm recess in lid for membrane keypads and front panels
  • Modern, high quality instrument enclosure
  • Material - Aluminum die-cast: GD SI 12 / DIN 1725
  • No need to disassemble enclosure when replacing
  • Captive stainless steel lid screws
  • Enclosure is mounted after closing lid
  • Neoprene oil and petrol resistant - thermoplastic gasket standard. (-40ºC up to +120ºC)
  • Degree of protection: NEMA 4X, IP67
  • Textured polyester powder coat, light grey RAL 7035. (can be supplied unpainted on special order)

Full Specifications
