R196 Series - ROLEC AluPLUS Watertight - Diecast Aluminium

Product Code -

  • Modern, high quality instrument enclosure
  • Material - Aluminum die-cast: GD SI 12 / DIN 1725

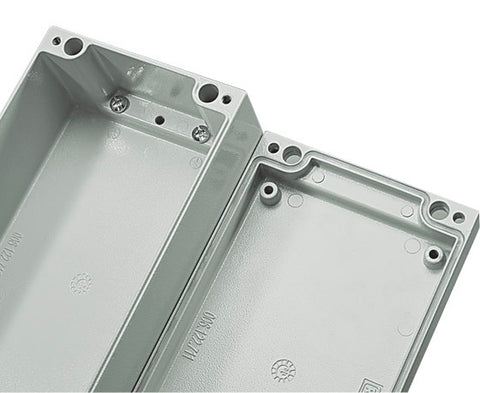

  • Shallow lid, deep body

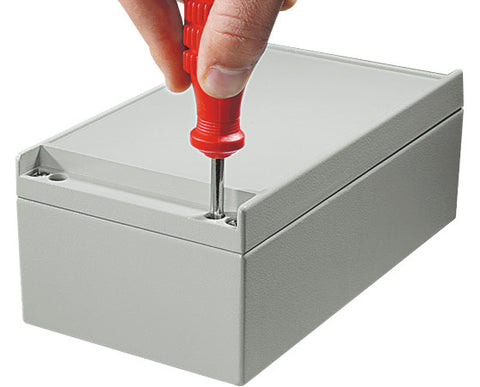

  • Captive stainless steel lid screws
  • Enclosure can be mounted to wall or shelf after closing the lid

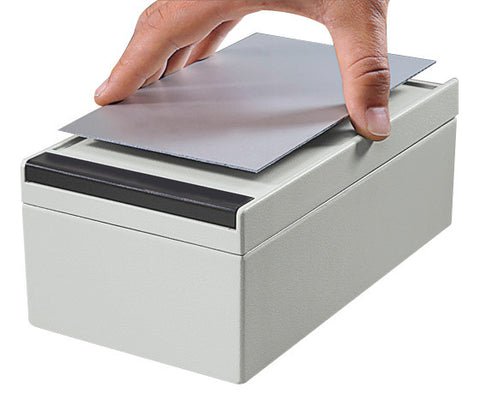

  • Integrated 1.7 mm recess in lid for membrane keypads and front panels
  • Silicone gasket standard. (-50ºC up to +140ºC)

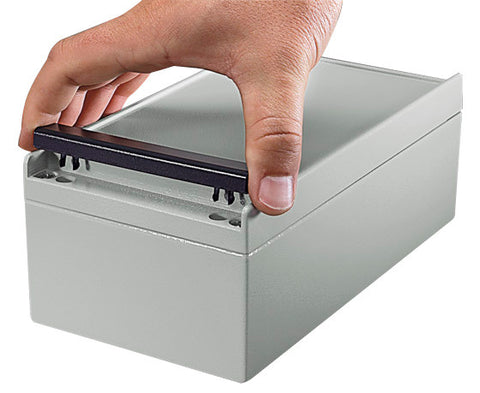

  • Dark grey plastic clip-on design covers - to hide mounting & lid screws (plastic - polyoxymethylene) - RAL 7016
  • Complete with lid captivation devices
  • Degree of protection: NEMA 4X, IP66
  • Textured polyester powder coat, light grey RAL 7035. (can be supplied unpainted on special order)

Full Specifications
