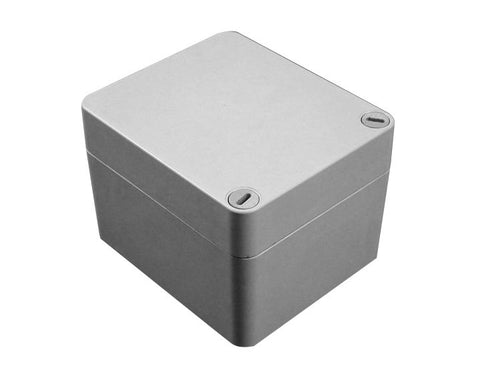

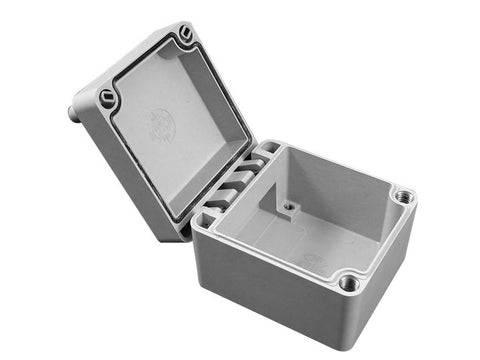

R130, R131 & R132 Series - ROLEC PolyTOP & PolyDOOR - Watertight - Polyster

Product Code -



Application
  • Designed for use as instrument enclosures, electrical junction boxes or terminal wiring enclosures.
  • Provide outstanding protection against dust, oil and pressurized water.
  • Impervious to atmospheric and marine corrosion.
Construction
  • Two piece molded fiberglass reinforced polyester construction.
  • Captive polyfibre cover screws are provided with a standard slot head.
  • Cover screws fasten into pre-threaded holes.
  • The threaded cover screw holes also provide single channel access to rear mounting positions.
  • Recessed neoprene gasket with tongue and groove construction is oil and petroleum resistant.
  • Threaded stainless steel inserts provide for internal mounting.
Finish
  • Light beige RAL 7032, Pantone 413
  • Spring loaded stainless steel hinge pins are standard, allowing for quick lid removal . (R130 & R131 Series only)
Standards
  • NEMA Type 1, 2, 3, 3R, 4, 4X, 5, 12 and 13
  • IEC 529, IP66
  • VO Flammability Rating
  • CSA certified, Type 4, for use with industrial control equipment

Full Specifications
