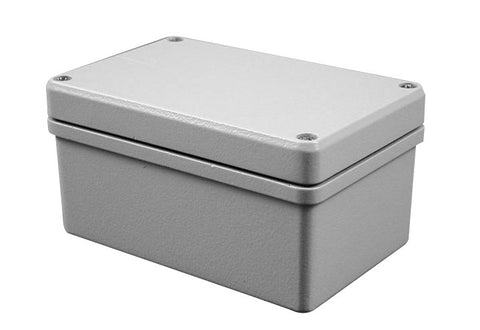

R110 & R111 Series - ROLEC ConFORM Watertight - Diecast Aluminium

Product Code -

  • Material - Aluminum die-cast: G AI SI 12 / DIN 1775
  • Shallow lid, deep body
  • Captive stainless steel lid screws
  • Neoprene oil and petrol resistant gasket standard. (-40ºC up to +80ºC)
  • EMI/RFI gasket is NOT required as lid to box connection is INSIDE the gasket seal. A patented system with special designed "teeth" in the enclosure bottom provide a lasting and corrosion secure shield.
  • Degree of protection NEMA 4X, IP66, DIN 40050
  • Temperature Range (-40ºC up to +80ºC)
  • Separate channel system (outside the seal)
  • Special developed external mounting feet made from zinc-die-cast. Can be turned through 90º. The fastening holes have engagement lugs for this purpose. (See accessories)
  • All sizes have inner blind holes. A mounting plate made of zinc-plated steel is available
  • Textured polyester powder coat, light beige/grey RAL 7032. (can be supplied unpainted on special order)
  • CSA certified, Type 4, for use with industrial control equipment
