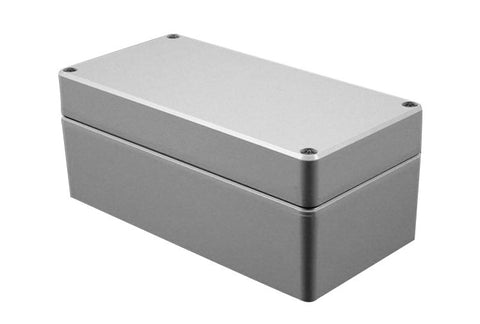

R100 Series - ROLEC AluNORM Watertight - Diecast Aluminium

Product Code -



  • Material - Aluminum die-cast: G AI SI 12 / DIN 1775
  • Shallow lid, deep body
  • Captive stainless steel lid screws
  • Neoprene oil and petrol resistant gasket standard. (-40ºC up to +80ºC)
  • Degree of protection NEMA 4X, IP66, DIN 40050
  • Temperature Range (-40ºC up to +80ºC)
  • Single-channel Fastening System
  • Special developed external mounting feet made from zinc-die-cast. Can be turned through 90º. The fastening holes have engagement lugs for this purpose.
  • All sizes have inner blind holes.
  • An inner mounting panel - made of zinc-plated steel is also available
  • Textured polyester powder coat, light grey RAL7032. (can be supplied unpainted on special order)
  • CSA certified, Type 4, for use with industrial control equipment.

Full Specifications
