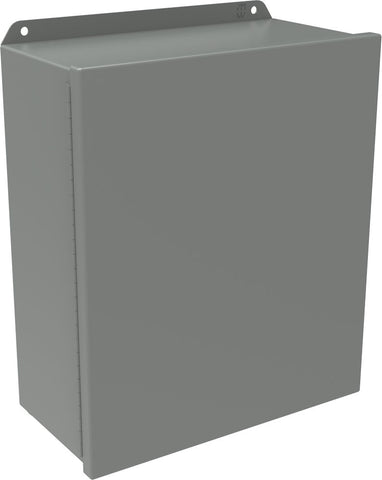

Type 4, 12 Mild Steel Junction Box. Continuous Hinge Door with Clamps.

Application

• Designed for use as instrument enclosures, electric, hydraulic or pneu­­matic control housings, electrical junction boxes or terminal wiring enclosures.
• Provides protection where equipment may be hosed down or otherwise be very wet, or in outdoor applications for full weather protection.

Standards

• UL 508 Type 3R, 4, 12 and 13
• CSA Type 3R, 4, 12 and 13
• Complies with
  • NEMA Type 3R, 4, 12 and 13
  • JIC EGP-1-1967 unless marked¹
  • IEC 60529, IP66

Construction

• Body formed from 16 or 14 gauge steel. Covers are formed from 14 gauge steel.
• Smooth, continuously welded seams without knockouts, cutouts or holes.
• Welded brackets provide for enclosure mounting.
• Continuous hinged cover is secured with stainless steel clamps and screws.
• Stainless steel continuous hinge on door may be removed by pulling the stainless steel hinge pin.
• Seamless poured-in place gasket.
• Internal threaded weld studs are provided for mounting inner panels.
• A bonding stud is provided on the door and a grounding stud is provided in the enclosure.

Finish

• Cover and enclosure are phos­phatized, finished in recoatable smooth ANSI 61 gray powder coating.
