Product Code -

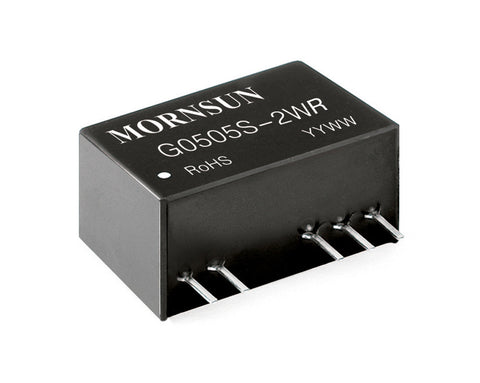

G_S-2WR2 series meet reinforced insulation requirements. It is specially designed for applications where require compact size, high isolation, low isolation capacitor and low leakage current power. It is widely used in medical, electricity, IGBT driver and so on. It is suitable for:

  1. Where the voltage of the input power supply is stable (voltage variation: ±10%Vin)
  2. Where isolation is necessary between input and output (isolation voltage ≤4200VAC or 6000VDC)
  3. Where do not has high requirement of line regulation and the ripple & noise of the output voltage; Such as: Medical collection and isolation, High voltage collection circuit, IGBT-driven circuits, etc.
  • Power (W) - 2
  • No. of Output - 2
  • Isolation (VDC) - 6000
  • Package - SIP
  • Dimension (mm) - 19.5 x 9.8 x 12.5

Datasheet Link
