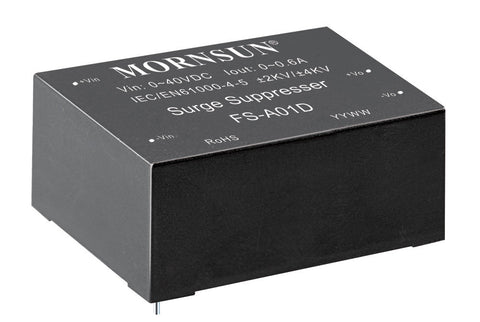

FS-A01D

FS-A01D

Product Code -



FS-A01D put on to the input of DC/DC module can substantially improve the EMS performance of the module , FS-A01D put on to the output of DC/DC module can substantially reduce the ripple and noise of the module. FS-A01D used with the MORNSUN DC/DC module, DC/DC module’s max. Input voltage must less than FS-A01D’s max. Voltage, DC/DC module’s max. Input current must less than FS-A01D’s nominal current.

  • Vin (VDC) - 0~40
  • Operating Temperature - -40~85ºC
  • Attenuation Rate - 30dB
  • Package - DIP / Chassis / DIN-Rail
  • Dimension (mm) - 33.7 x 22.2 x 18 (DIP)
  • Supporting Power Supply - DC/DC
  • Surge Voltage (KV) - ±2 / ±4

Datasheet Link
