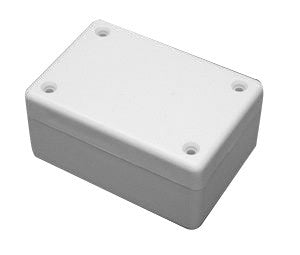

1594 Series - Heavy Duty Thickwall - ABS Plastic

Product Code -



Rugged electronic instrument enclosures, ideally suited for mounting printed circuit boards. Heavy duty, thick wall design with an average wall thickness of .13” (3.3 mm). Stocked in black and grey with matte textured finish.

    1594 - Flame Retardant

    • Molded from flame retardant ABS plastic (carries a UL flammability rating of 94V-0).
    • Designed to meet IP54 (see gasket kit to meet IP66)
    • Countersunk lid is secured with four M3 x 0.5 - 0.71” (18 mm) long, Philips machine screws threaded into integral brass bushings. Perfect for applications with repetitive assembly and disassembly are required.

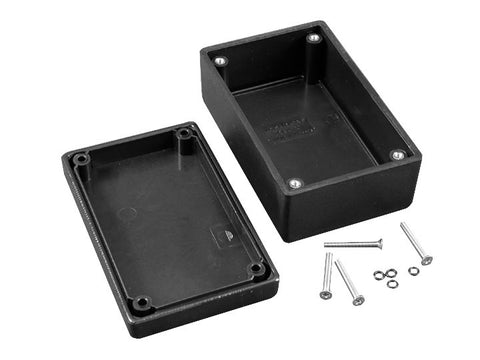

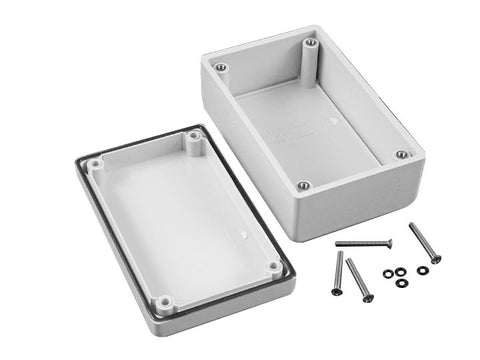

    1594 "W" - Watertight + Flame Retardant

    • Molded from flame retardant ABS plastic (carries a UL flammability rating of 94V-0)
    • Lap joint construction with a factory poured silicone rubber gasket around the perimeter of the lid provides protection against access of dust and water
    • Silicone rubber gasket remains flexible from -62 to +232ºC (-80 to +450 ºF)
    • Designed to meet IP65
    • Countersunk lid is secured with four M3 x 0.5 - 0.71” (18 mm) long, stainless steel, Philips machine screws threaded into integral brass bushings
    • Countersunk screw heads use neoprene "O" rings (included)

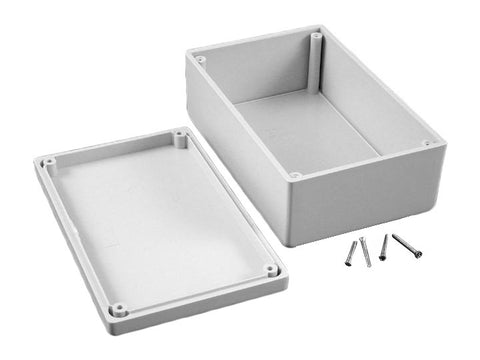

    1594 "S" - Economical
    • No inserts and molded in general purpose plastic
    • Designed to meet IP54 (see gasket kit to meet IP66)
    • Countersunk lid is secured with four #4 x 1” (25.4 mm) self tapping screws
    Full Specifications
