1591XX TBU Series - Multi-purpose - ABS Plastic

Product Code -

  • Ideally suited for mounting printed circuit boards horizontally.
  • Molded in translucent blue ABS plastic (translucent to blue, white and near white LEDs, readouts & displays).

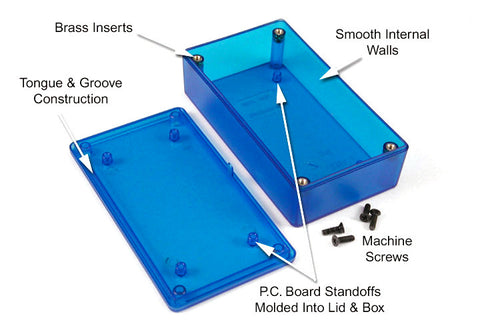

  • Internal sides of enclosure are smooth for easy connector installation (see photos). See drawing and/or photo tables for more details.
  • Strong - tongue and groove lid to box construction provides protection against access of dust and splashing water.
  • Designed to meet IP54.
  • Lid and box both contain - molded in PC board standoffs.
  • Molded from easy to machine, translucent blue ABS plastic, with a satin texture.
  • Lid is secured with M3 x 10 mm, black Philips machine screws, threaded into integral brass bushings. Perfect for applications when repetitive assembly and disassembly are required

Full Specifications
