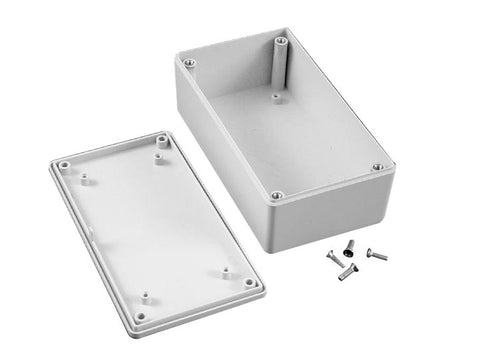

1591XX Series - Multi-purpose Flame Retardant - ABS Plastic

Product Code -

  • Ideally suited for mounting printed circuit boards horizontally.
  • Internal sides of enclosure are smooth for easy connector installation (see photos) - except for the largest enclosure the 1591XXF size which is a universal type (ie...includes P.C.board standoffs in the lid and enclosure PLUS includes card guides).
  • Strong - tongue and groove lid to box construction provides protection against access of dust and splashing water.
  • Designed to meet IP54.
  • Lid and box both contain - molded in PC board standoffs.
  • Molded from easy to machine, flame retardant ABS plastic (material carries a UL flammability rating of 94V-0).
  • Stocked in satin texture black and grey.
  • Lid is secured with M3 x 10 mm Philips machine screws, threaded into integral brass bushings. Perfect for applications with repetitive assembly and disassembly are required.
  • Black enclosures include black screws, all others - standard nickel finish screws
