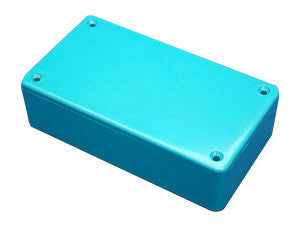

1591 Series - Multipurpose with Card Guides - Flame Retardant - ABS Plastic

Product Code -

  • Ideally suited for vertical mounting of printed circuit boards (internal side walls include molded in card guides).
  • Integral card guides accept 1.5 mm (0.062") P.C. cards.
  • Lap joint construction provides protection against access of dust and splashing water.
  • Designed to meet IP54.
  • Molded from easy to machine flame retardant ABS plastic (material carries a UL flammability rating of 94V-0).
  • Lid is secured with M3 x 10 mm Philips machine screws, threaded into integral brass bushings. Perfect for applications when repetitive assembly and disassembly are required
  • Black enclosures include black screws, all others - standard nickel finish screws

Full Specifications
