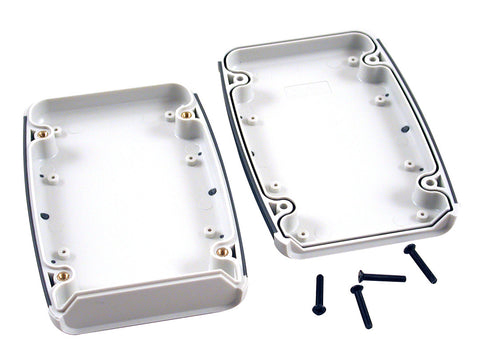

1553W Series - Soft Sided Watertight Hand Held - Flame Retardant ABS

Product Code -

  • Ergonomically designed for hand-held comfort.
  • Designed to meet IP65. Uses a one piece silicone gasket (installed). Enclosure utilizes tongue & groove construction - molded into the top & bottom halves.
  • Choice of three sizes - in two colors.
  • Molded in flame retardant - ABS plastic (FRABS) - UV stabilized. With a grey overmold, soft plastic grip.
  • Top cover is recessed for membrane display or keypad.
  • P.C. board standoffs are molded into both the top & bottom of the enclosure (see drawings or photos for more details). Standoff screws (M2) not included.
  • Front panel is an integral part of the top half of the enclosure.
  • Choice of two enclosure colors, light grey (RAL 7035) or black (RAL 9011) - soft side "grip" plastic color is grey (RAL 7012).
  • Enclosure is secured with black Philips, stainless steel, machine screws, threaded into integral brass bushings. Perfect for applications when repetitive assembly and disassembly are required.
  • Assembly hardware included

Full Specifications
