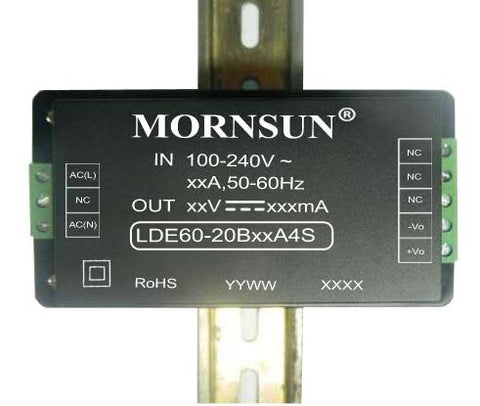

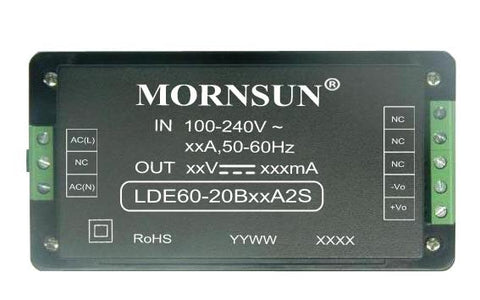

LDE60-20Bxx series is one of Mornsun’s compact size power converter. It features universal AC input and at the same time accepts DC input voltage, low power consumption, high efficiency, high reliability, high power density, reinforced isolation. It offers good EMC performance compliant to IEC/EN61000-4 and CISPR32/EN55032 and meets IEC/UL/EN62368 standards. The converters are widely used in industrial, power, instrumentation, communication and civil applications. For extremely harsh EMC environment, we recommend using the application circuit shown in Design Reference of this datasheet.

• Universal 85-264VAC or 100-370VDC input voltage
• Operating ambient temperature range: -40℃ to +70℃
• High I/O isolation test voltage up to 4000VAC
• High reliability, high power density, high efficiency
• Output short circuit, over-current, over-voltage protection
• Regulated output, low ripple & noise
• Plastic case meets UL94V-0 flammability
• EMI performance meets CISPR32 / EN55032 CLASS B
