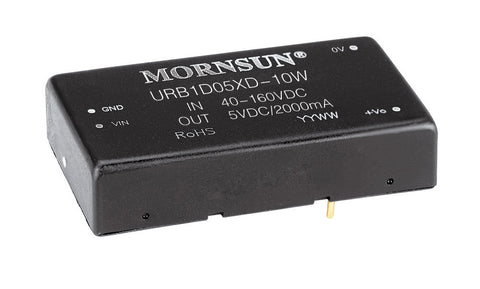

URB1D_XD-10W
Product Code -
URB1D_XD-10W series are isolated 10W DC-DC products with 4:1 input voltage .They feature efficiency up to 86%, 1500VDC isolation, operating temperature of -40¼ ~+85¼ , output over-voltage protection，short-circuit protection. It offers good EMC performance, meet EN60950 and EN50155 standards. All models are particularly suited to railway etc.c. And extension package A2S and A4S also enable them with reverse voltage protection.
- Power (W) - 10
- Vin (VDC) - 110 (40~160)
- No. of Outputs - 1
- Isolation (VDC) - 1500
- Package - DIP
- Dimension (mm) - 50.8 x 25.4 x 11.8
