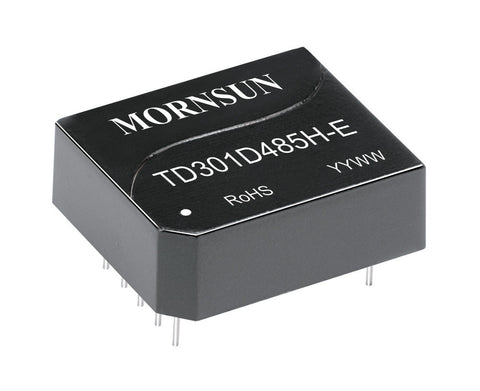

Single high rate RS485 isolation transceiver module TD301D485H-E/TD501D485H-E series are RS485 transceiver module with integrated isolated power, Signal isolated chip and the bus protection device. Product's main function is to convert logic level to difference level of the RS485 agreement, and it implements the function of signal isolation.Products is with isolation power. It can achieve 2500 VDC electrical isolation and have the function of ESD protection. Product can be easily embedded user equipment, makes the equipment easily implement connection of RS485 protocol network.

• Integrated Power
• No. of Channel - 1
• Transmission Rate (bps) - 0~500K
• Nodes - 256
• Isolation (VDC) - 2500
• Package - DIP10
• Features - Enhanced
