LM35-10Cxx

LM35-10Cxx

Product Code -

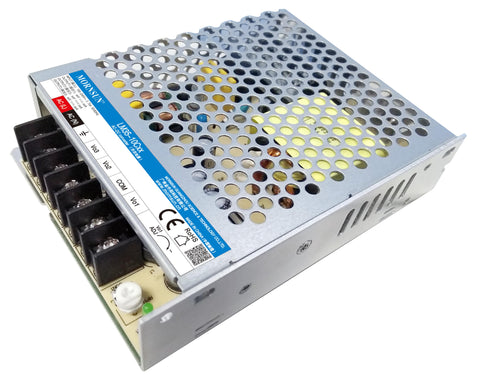

This LM35-10Cxx series of power converter design features triple output versions, which can independently supply 3 different loads in the system. The products can be used in harsh working environments with an ambient temperature range from -30°C ~+70°C, without the need of the fan for further heat dissipation. In addition, the converters EMC immunity performance meets the requirements of IEC61000 standard and meet emission standard CISPR32/EN55032, class B without any external components, thus providing excellent EMC protection. The products also meet IEC/EN/UL62368, EN60335, GB4943 safety standards. The converters integrate a variety of protection features and offer a high-performance to low-cost ratio providing the best power solution for a variety of industries such as industrial control equipment, instrumentation and smart home and building equipment application

  • Vin (VAC) - 85~264
  • Vin (VDC) - 120~373
  • No. of Outputs - 3
  • Isolation (VAC) - 3000
  • Dimension (mm) - 99 x 97 x 30

Datasheet Link
