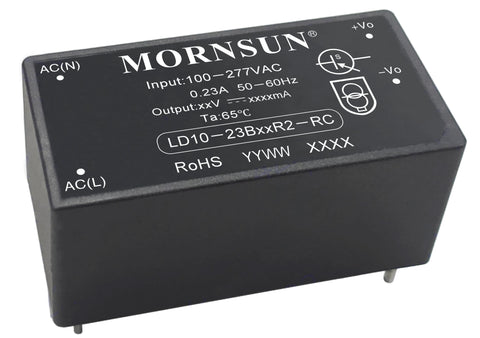

LD10-23BxxR2-RC series is one of Mornsun’s compact AC-DC power converters. It features ultra-wide AC input voltage ranges and compatible with DC input voltage, low power consumption, low ripple & noise, high efficiency, high reliability, reinforced insulation. It offers good EMC performance compliant to IEC/EN61000-4 and CISPR32/EN55032 and meets safety standard IEC/EN/UL62368, EN60335, EN62477. The converters are widely used in industrial, electric automation, home appliances and EV charging applications. For extremely harsh EMC environment, we recommend to use the application circuit shown in Design Reference of this datasheet.

• Ultra-wide 85 - 305VAC and 100 - 430VDC input voltage range
• Operating ambient temperature range: -40℃ to +80℃
• High I/O isolation voltage up to 4200VAC
• Output short circuit, over-current, over-voltage protection
• Plastic case meets UL94V-0 flammability
• OVC Ⅲ (meet EN62477-1)
• EMI performance meets CISPR32/EN55032 CLASS B
