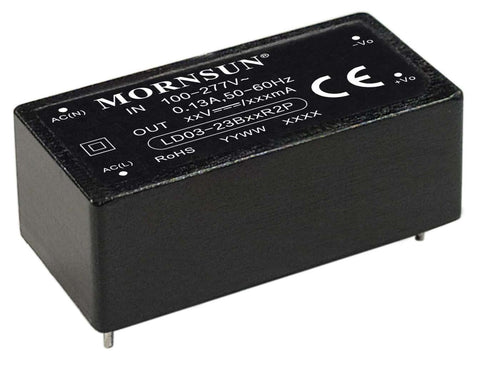

LD03-23BxxR2P series AC-DC converters is one of Mornsun’s compact size power converter. It features ultra-wide AC input and at the same time accepts DC input voltage, low power consumption, high efficiency, high reliability, reinforced isolation. It offers good EMC performance compliant to IEC/EN61000-4 and CISPR32/EN55032 and meets IEC/EN/UL62368/EN60335/EN61558 standards. The converters are widely used in industrial, power, home appliances, instrumentation, communication and civil applications. For extremely harsh EMC environment, we recommend using the application circuit show in Design Reference of this datasheet.

• Ultra-wide 85 - 305VAC and 100 - 430VDC input voltage range
• Operating ambient temperature range: -40℃ to +85℃
• Up to 78% efficiency
• High power density
• No-load power consumption 0.1W
• Output short circuit, over-current protection
• Plastic case meets UL94V-0 flammability
