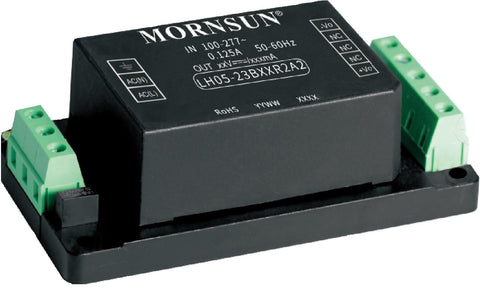

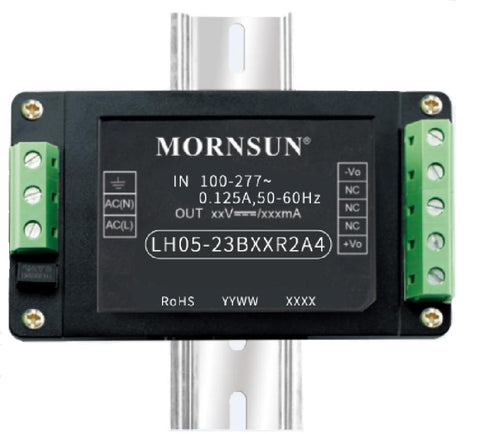

LH05-23BxxR2 series is one of Mornsun’s compact size power converter. It features universal AC input and at the same time accepts DC input voltage, low power consumption, high efficiency, high reliability, reinforced isolation. It offers good EMC performance compliant to IEC/EN61000-4 and CISPR32/EN55032. The converters are widely used in industrial, office and civil applications. For extremely harsh EMC environment, we recommend using the application circuit show in Design Reference of this datasheet.

• Wide 85 - 305VAC or 100 - 430VDC Input voltage range

• Operating ambient temperature range: -40℃ to +85℃
• High I/O isolation test voltage up to 4000VAC
• Low power consumption, High efficiency, High reliability
• Output short circuit, over-current, over-voltage protection
• 5000m altitude application
• Plastic case meets UL94V-0 flammability
• OVC Ⅲ (meet IEC62477-1, 2000m altitude)
• Meets Emissions CLASS B and surge ±2KV/±4KVwithout additional circuits
